Monroe Seats for the B and C tractors

The most common models of aftermarket seats produced for Allis-Chalmers tractors were made by the Monroe Auto Equipment Company of Monroe, MI (the shock absorber makers). They were known as E-Z Ride seats. There were at least two types of E-Z Ride seats made for the B and C tractors, 16006 and 16017. Item 16006 was the earlier style and was superseded by Item 16017.

Click on the images below for a larger view

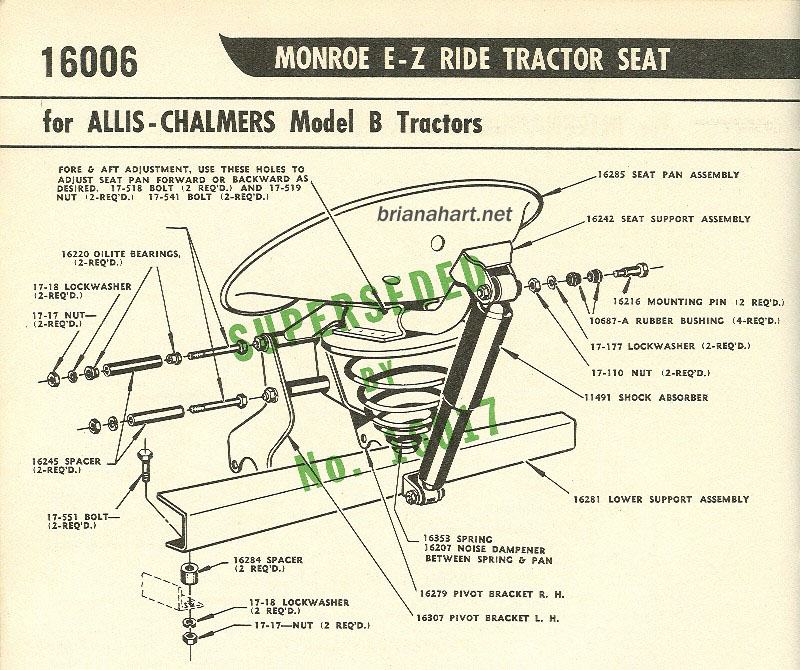

Seat 16006 Schematic	Seat 16017 Schematic

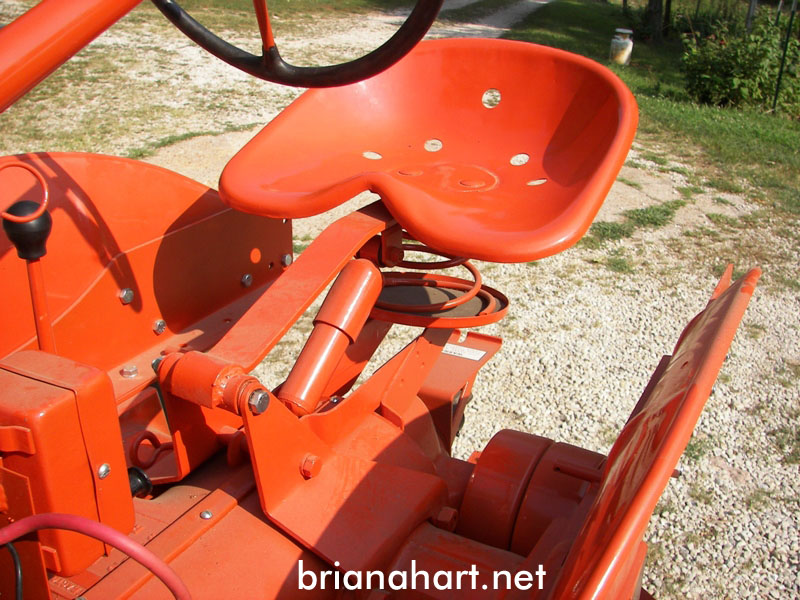

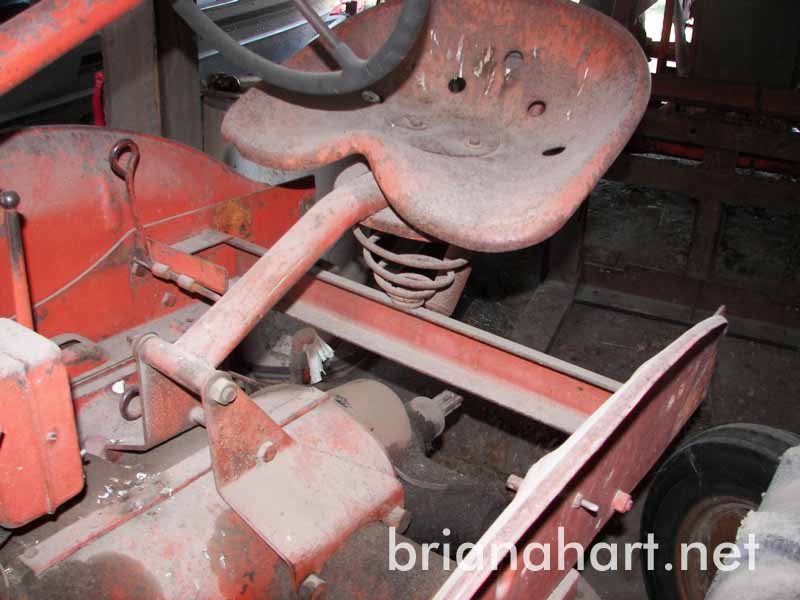

Seat 16006 on the Aharts' Model C	Seat 16017 on the Aharts' Model C
